KH 4121/27 - Van trailer

16,125.00

Designed for large jobs: high-bed trailer with a white or (optional) grey superstructure. In this medium sized version you can transport a load with a volume of 16.6 m³. This high-bed trailer construction with robust cross-beams and a solid steel profile bridge satisfies the highest professional requirements.

$16,125+GST

4100mm long x 2060mm wide x 1970mm high, 2.7t



Add To Cart

Specifications

  • Axles: 2
  • Tow rating: 2.7t
  • Weight: 1,680kg
  • Payload: 1,020kg
  • Interior dimensions: 4100mm long x 2060mm wide x 1970mm high
  • Loading height: 640mm
  • Chassis: Hot-dipped galvanised steel
  • Structure: Hot-dipped galvanised steel

Standard equipment

  • Overrun brakes
  • Robust platform trailer construction made from special galvanised steel profiles with a solid profiled steel bridge
  • Solid crossbeam construction for a high degree of stability, suitable for large loads
  • Solid, type-testd V-drawbar bolted securely to the frame construction - for outstanding driving stability
  • Solid cast coupling
  • Solid Automatic jockey wheel
  • Maintance-free rubber axle (with individual wheel suspension)
  • Stainless steel bolts on structure
  • Large safety lights with integrated rear fog light
  • Impact resistant, recyclable plastic mud guards
  • Multi-bonded, laminated white plywood box (robust and weatherproof)
  • Interrior lighting

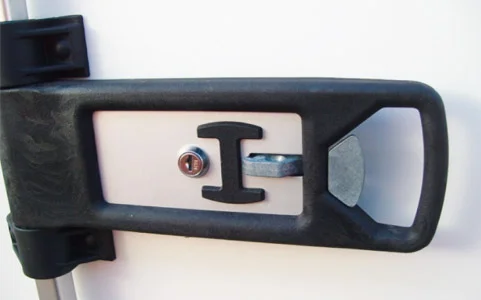

  • 2-wing door with espagnolette lock, robust hinges and rubber seales
  • Non-slip screen printed floor (mulitbonded and waterproof)
  • Solid lashing rings (10) bolted securely to the screen printed flooring (maximum traction force of 250kg)
  • 2 robust manoeuvre handles
  • Impact resistant, recyclable plastic mud guards
  • 14" wheels

Options

  • WCF chassis (independet coil sprung suspension with 1 shock absorber per wheel)
  • Wheel shock absorbers (4)
  • Spare wheel & holder
  • Aluminium checker plate on floor
  • Galvanised steel panel on floor
  • Swing-open flap
  • Door on side or front
  • Anchor rail
  • Locking bar
  • Clothes hanger rod
  • Recessed lashing lugs
  • Aluminium loading rails, insertable
  • Loading ramp instead of wing door, incl lifting device and compensation plate
  • Motorbike rails
  • Standing cycle rail with bracket
  • Rear telescopic crank support
