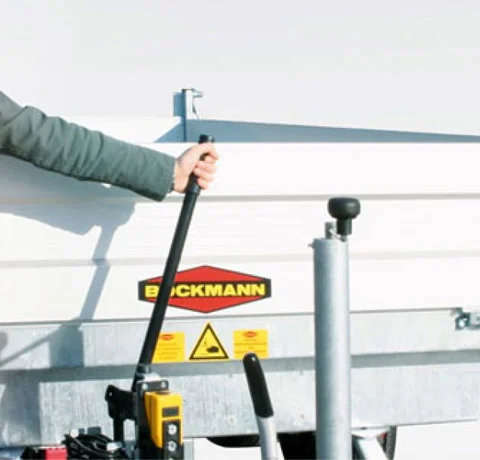

Boeckmann Hydraulic lever tipper.jpg

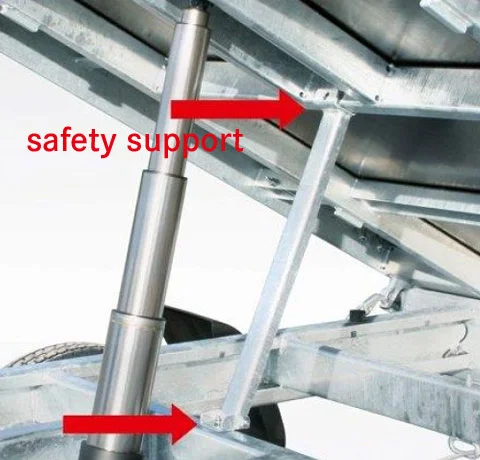

Boeckmann safety support.jpg

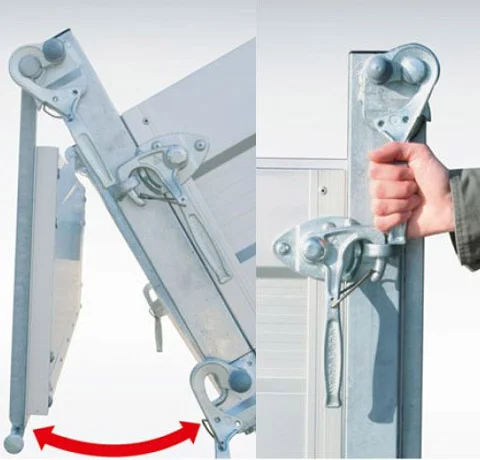

Boeckmann Pendular platform gate.jpg

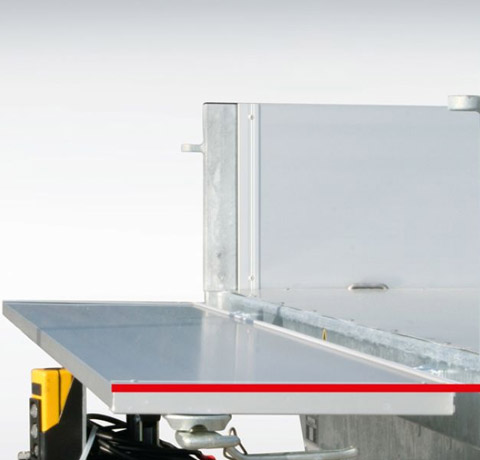

Boeckmann Folding front wall.jpg

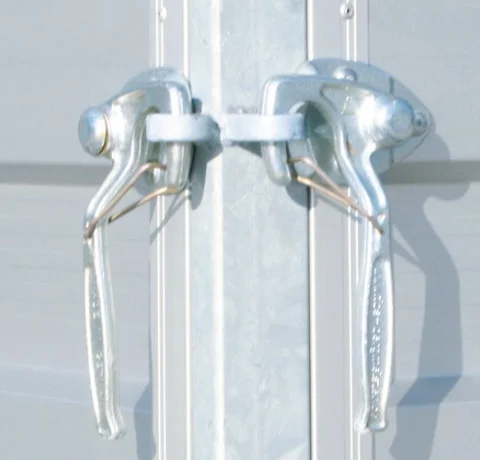

Boeckmann wall locks.jpg

RK-ST 2516/27 - Tipping trailer

6,700.00

This new backwards tipping trailer with an inside length of 2560 mm and 2.7t tow rating has a high quality welded frame construction, solid steel profile bridge, practical pendular platform gate and screen printed floor that is reinforced with galvanised sheet steel for extreme localised loads.

$6,700+GST

2560mm long x 1650mm wide, 2.7t

Add to Wishlist

Specifications

  • Axles: 2
  • Tow rating: 2.7t
  • Weight: 730kg
  • Payload: 1,970kg
  • Interior dimensions: 2560mm long x 1650mm wide x 400mm high (side walls)
  • Loading height: 695mm
  • Chassis: Hot-dipped galvanised steel
  • Structure: Hot-dipped galvanised steel

Standard equipment

  • Overrun brakes
  • Maintance-free rubber axle (with individual wheel suspension)
  • Steel sidewalls (hot-dipped galvanised, foladable with cast hinges)
  • Galvanised steel sheet on wisedeck floor
  • Corner steel posts (hot-dipped galvanised steel, removable)
  • Swinging rear gate (with elevated corner steel posts for large opening height)
  • Hydraulic tipping with security support (with large hydraulic telescopic cylinder)
  • V-draw bar
  • Automatic jockey wheel
  • Solid cast coupling
  • Lashing bars/shackles with spring (rattle-free, maximum traction force 250kg)
  • Integrated rain slot for loading ramps (underneath floor in chassis)
  • Stainless steel bolts on structure
  • Screwed axle supports
  • Screwed longitudinal beams
  • Screwed cross members
  • Impact resistant, recyclable plastic mud guards
  • 13" wheels

Options

  • Wheel shock absorbers (4)
  • Electronic-hydraulic pump (with battery (12V/88H) and emergency hand pump)
  • Battery charger
  • Sidewall gallery (sides, hot-dipped galvanised steel)
  • Ladder rack (front wall)
  • Flat canvas top (with bracket)
  • Container net
  • Spare wheel & holder
  • Retaining cable at dropdown rear wall
  • Aluminium drive-on ramps (per pair, 2,000x220mm, 300kg capacity per rail)
  • Aluminium drive-on ramps (per pair, 2,410x250mm, 1,350kg capacity per rail)
  • Telescopic crank drop legs (pair)
  • Additional lashing rings
