HL-AL 3218/27 - Platform trailer

6,390.00

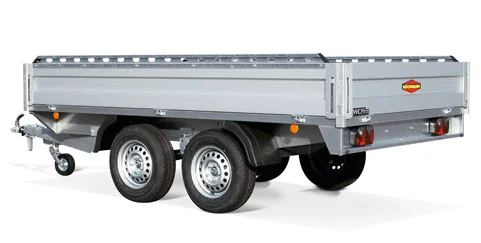

Master all heavy transport challenges with ease. Boeckmann high-bed trailers are designed to meet high demands and are perfect for convenient transport of heavy loads. These robust and durable twin-axle trailers are excellent value for money and built to last - a range of accessories offers a wide choice of customised extras!

$6,390+GST

3240mm long x 1800mm wide, 2.7t

Add to Wishlist

Specifications

  • Axles: 2
  • Tow rating: 2.7t
  • Weight: 559kg
  • Payload: 2,141kg

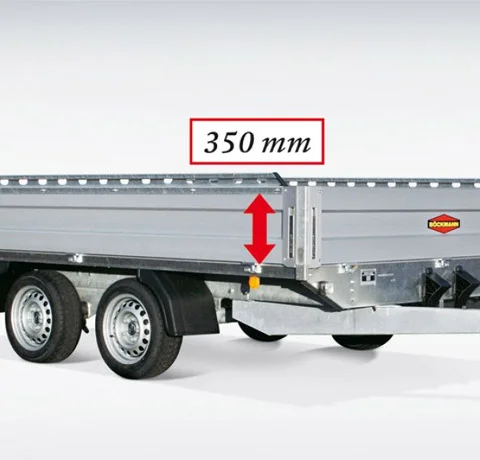

  • Interior dimensions: 3240mm long x 1800mm wide x 350mm high (side walls)
  • Loading height: 640mm
  • Chassis: Hot-dipped galvanised steel
  • Structure: Hot-dipped galvanised steel

Standard equipment

  • Overrun brakes
  • Maintance-free rubber axle (with individual wheel suspension)
  • Alumnium sidewalls (anodised, reinforced close profile, foladable, cast hinges and recessed latches)
  • Corner steel posts (hot-dipped galvanised steel, removable)
  • Non-slip screen printed floor (mulitbonded and waterproof)
  • V-draw bar
  • Automatic jockey wheel
  • Solid cast coupling

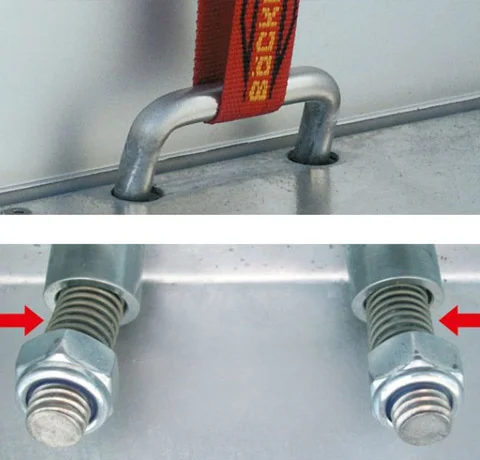

  • Lashing bars/shackles with spring (rattle-free, maximum traction force 500kg)
  • Stainless steel bolts on structure

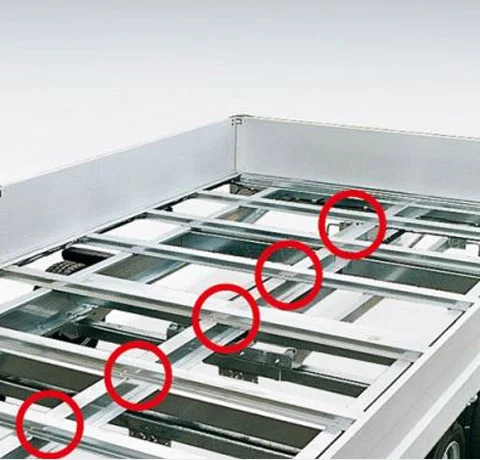

  • Solid cross & longitudinal beams (bolted to one another and outside of frame for extreme strenght)
  • Screwed axle supports
  • Impact resistant, recyclable plastic mud guards
  • 13" wheels

Options

  • WCF chassis (independet coil sprung suspension with 1 shock absorber per wheel)
  • Wheel shock absorbers (4)
  • Sidewall gallery (sides, hot-dipped galvanised steel)
  • Sidewall gallery (front and rear, hot-dipped galvanised steel)
  • Ladder rack (front wall)
  • Flat canvas top (with bracket)
  • Container net
  • Spare wheel & holder
  • Aluminium drive-on ramps (per pair, 2,000x200mm, 400kg capacity per pair)
  • Aluminium drive-on ramps (per pair, 2,000x200mm, 300kg capacity per rail, with mounted anti-skidding protection)
  • Aluminium drive-on ramps (per pair, 2,410x250mm, 1,350kg capacity per rail, with mounted anti-skidding protection)
  • Steel drive-on ramps (per pair, 2,000x260mm, 1,200kg capacity per rail, with mounted anti-skidding protection)
  • Brackets for rails (on left and right sidewalls)
  • Telescopic crank drop legs (per pair)
  • Additional lashing rings
  • Lockable plastic storage case (440x150x210mm, 20kg max load)
