HL-AL 4121/35 - Platform trailer

0.00

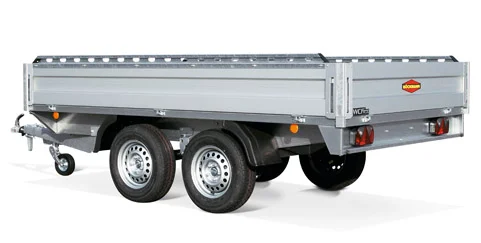

Master all heavy transport challenges with ease. Boeckmann platform trailers are designed to meet high demands and are perfect for convenient transport of heavy loads. These robust and durable twin-axle trailers are excellent value for money and built to last - a range of accessories offers a wide choice of customised extras!

POA

4140mm long x 2100mm wide, 3.5t

Add to Wishlist

Specifications

  • Axles: 2
  • Tow rating: 3.5t
  • Weight: 725kg
  • Payload: 2,775kg
  • Interior dimensions: 4140mm long x 2100mm wide x 350mm high (side walls)
  • Loading height: 640mm
  • Chassis: Hot-dipped galvanised steel
  • Structure: Hot-dipped galvanised steel

Standard equipment

  • Overrun brakes
  • Maintance-free rubber axle (with individual wheel suspension)
  • Alumnium sidewalls (anodised, reinforced close profile, foladable, cast hinges and recessed latches)
  • Corner steel posts (hot-dipped galvanised steel, removable)
  • Non-slip screen printed floor (mulitbonded and waterproof)
  • V-draw bar
  • Automatic jockey wheel
  • Solid cast coupling

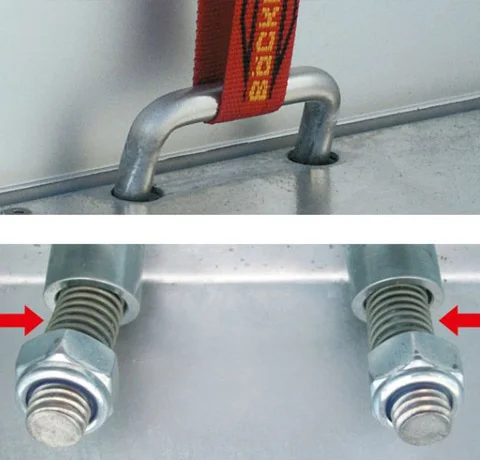

  • Lashing bars/shackles with spring (rattle-free, maximum traction force 500kg)
  • Stainless steel bolts on structure
  • Solid cross & longitudinal beams (bolted to one another and outside of frame for extreme strenght)
  • Screwed axle supports
  • Impact resistant, recyclable plastic mud guards
  • 13" wheels

Options

  • WCF chassis (independet coil sprung suspension with 1 shock absorber per wheel)
  • Wheel shock absorbers (4)
  • Sidewall gallery (sides, hot-dipped galvanised steel)
  • Sidewall gallery (front and rear, hot-dipped galvanised steel)
  • Ladder rack (front wall)
  • Flat canvas top (with bracket)
  • Container net
  • Spare wheel & holder
  • Aluminium drive-on ramps (per pair, 2,000x200mm, 400kg capacity per pair)
  • Aluminium drive-on ramps (per pair, 2,000x200mm, 300kg capacity per rail, with mounted anti-skidding protection)
  • Aluminium drive-on ramps (per pair, 2,410x250mm, 1,350kg capacity per rail, with mounted anti-skidding protection)
  • Steel drive-on ramps (per pair, 2,000x260mm, 1,200kg capacity per rail, with mounted anti-skidding protection)
  • Brackets for rails (on left and right sidewalls)
  • Telescopic crank drop legs (per pair)
  • Additional lashing rings
  • Lockable plastic storage case (440x150x210mm, 20kg max load)
