Specifications

• Weight: 1238kg

• Tow rating: 2700kg

• Interior dimensions: 2300mm high x 1750mm wide x 3900mm long

• Exterior dimensions: 2820mm high x 2310mm wide x 5260mm long

• Horse bay dimensions: 875mm wide x 170cm to 185cm long (adjustable)

Standard features ...

• Fully galvanised steel frame designed for heavy loads (galvanised steel frame with 8-point bolt connection to the longitudinal beam construction)

• Boeckmann class-leading WCF® chassis (independent 4-wheel sprung suspension)

• Superb German four-wheel mechanical braking system featuring auto reverse

• Cast lockable Knott coupling (fits 50mm ball size)

• Alloy wheels with heavy-duty commercial tyres plus spare wheel

• Aerodynamic fibreglass structure available in different colours

• Aluminium floor covered with anti-slip rubber flooring (fully glued and sealed)

• 4 large tinted perspex sliding windows

• Air vent

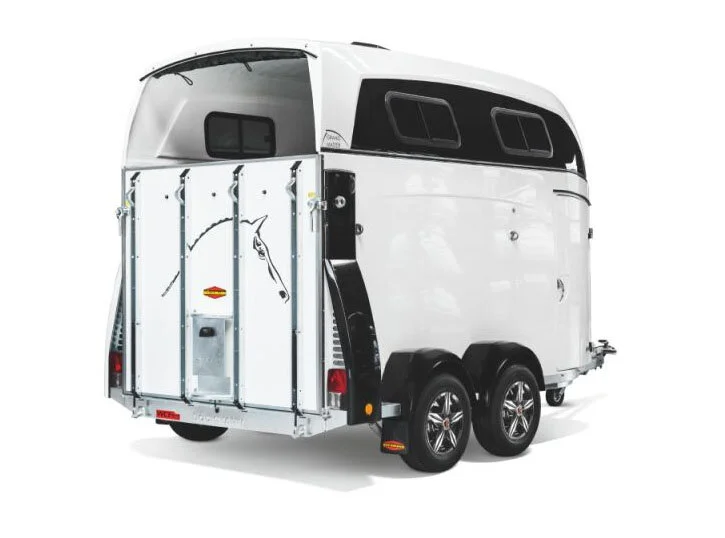

• Ramp with gas shocks and non-slip rubber safety mat with treads and side stops

• Lockable fibreglass flap above rear ramp (added additional extra)

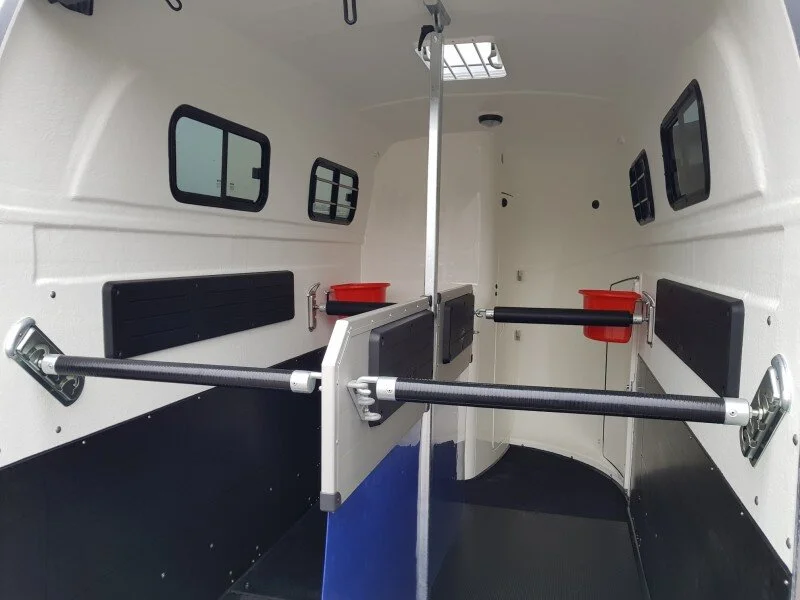

• Boeckmann height & length adjustable, external rapid release safety stall bars (MSS)

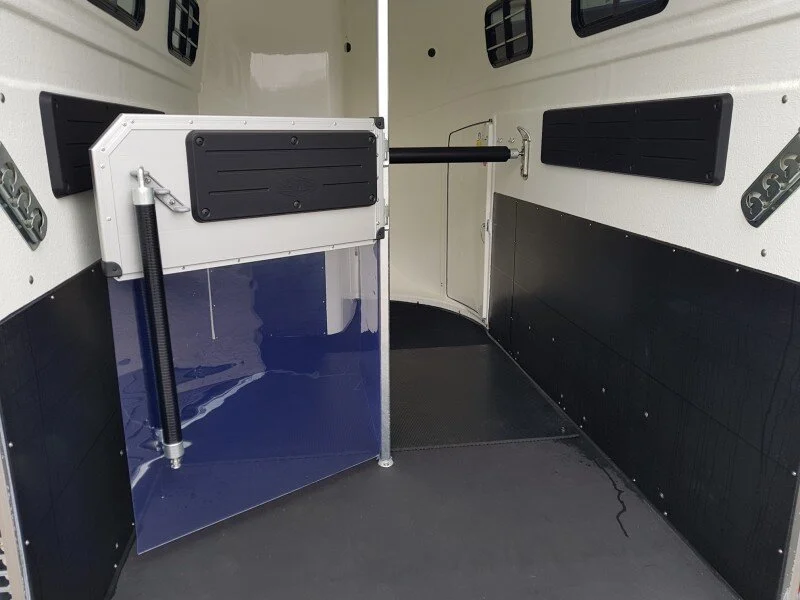

• Swivelling and fully removable centre partition with central post

• Durable High Density Polyethylene internal side kick protection

• Padded sides and chest bars

• Additional wear mat in front leg area for extra durability

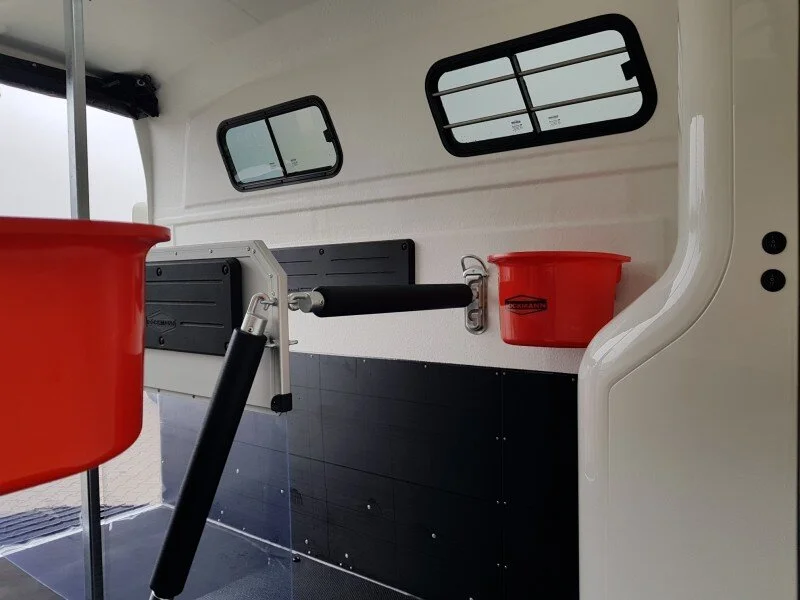

• 2 feeding troughs with holder and carry handle

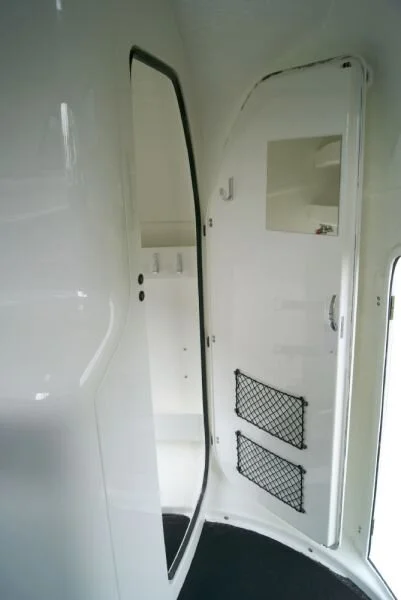

• Walk-in tack room, which is accessible from the outside AND the inside through a man-high door. Fully sealed with extendable saddle racks, bridle hooks, mirror, shovel & brush, interior lighting - self draining and well ventilated

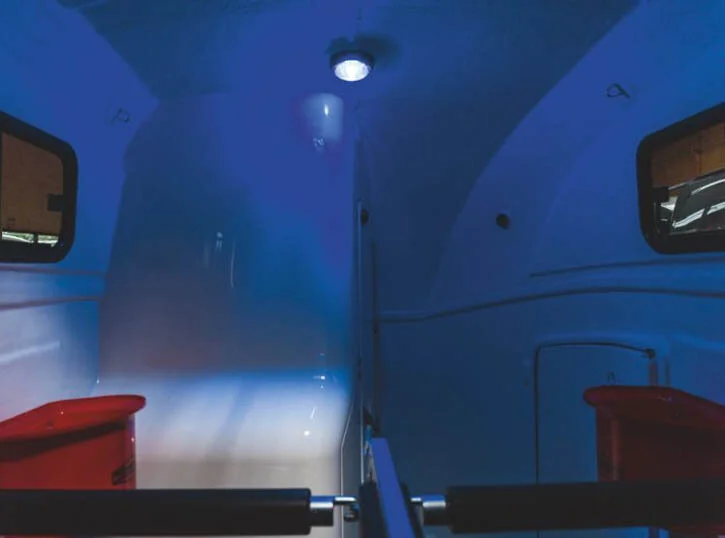

• Interior LED lighting switchable from white to blue

• Comprehensive 2 year warranty

Optional extras

• Weather-proof protective cover for coupling and jockey wheel

• Climbing aid (foldable mounting block)

• Exterior storage bar for saddle and saddle blanket

• Full width chest and butt bars

• Foldable foal gates

• Head divider / stallion guard

• Decor motif on each side wall (small or large)

• Sulky holder on rear ramp

Boeckmann decors

Enhance the appearance of your Boeckmann horse float with a small or large decor designed by Jan Kuenster. Decors are available in silver, black or multicoloured. On request we will be happy to create decors and decor sizes to your specifications.
