Specifications

• Weight: 1670kg

• Tow rating: 3500kg

• Interior dimensions: 2400mm high x 2000mm wide x 4570mm long

• Exterior dimensions: 2810mm high x 2550mm wide x 5705mm long

• Length of each horse bay: 2670mm

Standard features ...

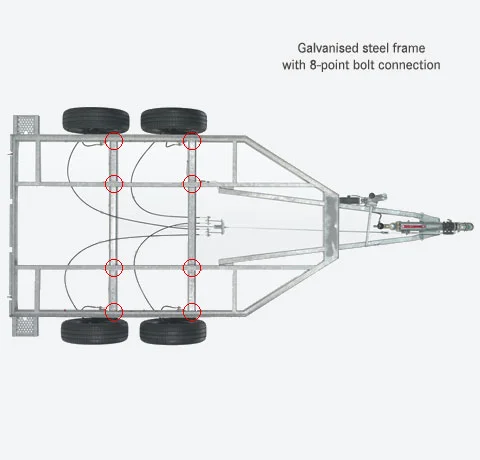

• Fully galvanised steel frame designed for heavy loads (galvanised steel frame with 8-point bolt connection to the longitudinal beam construction)

• Boeckmann lowered comfort suspension chassis CFF plus® (rubber torsion bar with individual shock absorbers)

• Superb German four-wheel mechanical braking system featuring auto-reverse

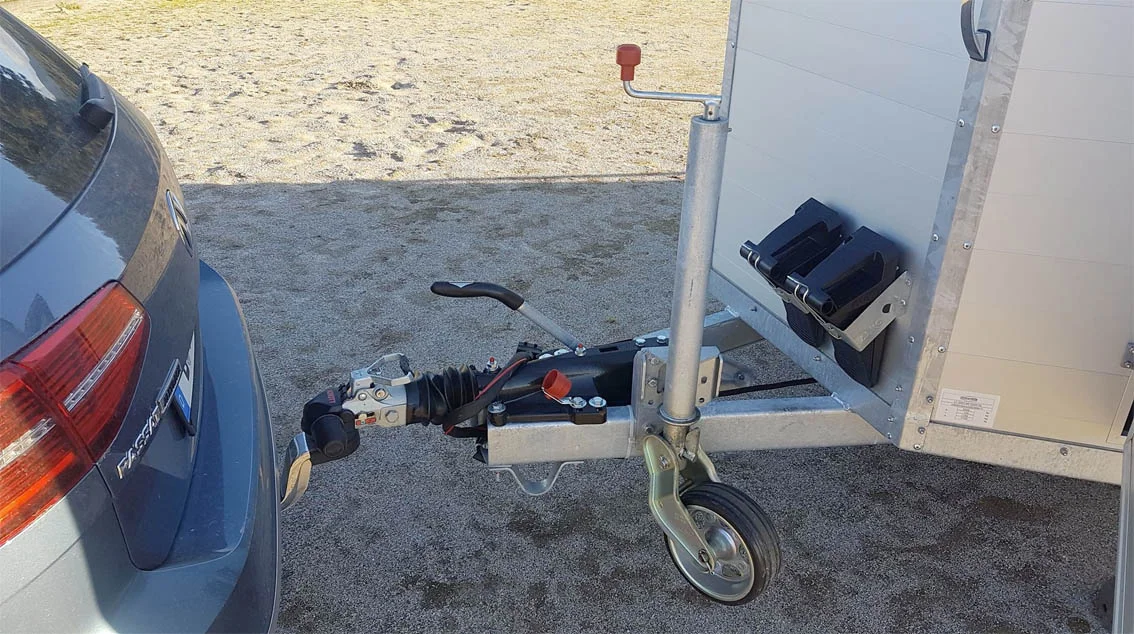

• Cast lockable Knott coupling (fits 50mm ball size)

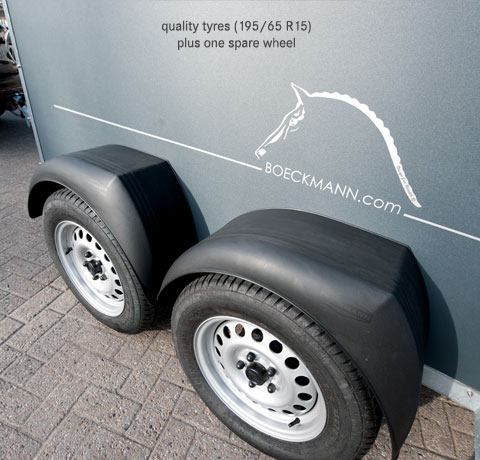

• 15" heavy-duty commercial steel wheels and tyres plus spare wheel

• Impact resistant composite mudguards

• Double web profile anodised aluminium side walls (2100mm high)

• Fibreglass roof available in different colours

• 5 special profile bows

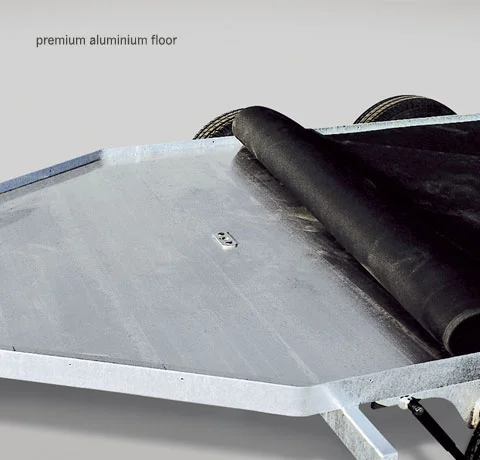

• Aluminium floor covered with anti-slip rubber flooring (fully glued and sealed)

• Full height access door

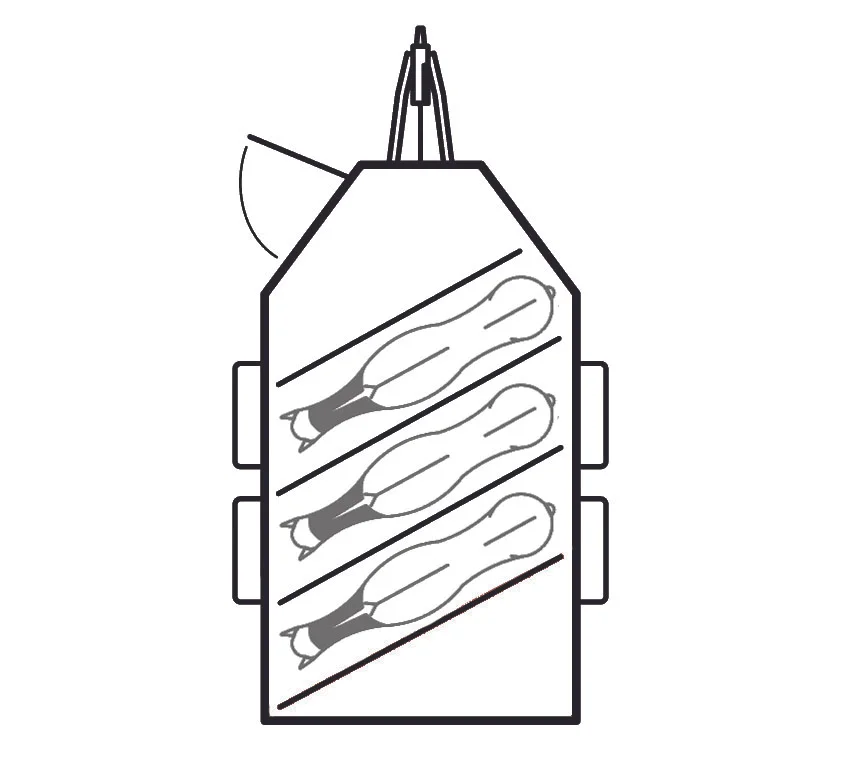

• Positioning of the horses can be either rear facing OR forward facing with a front off-load ramp

• 3 large tinted sliding windows on right-hand side for rear-facing or on left-hand side for forward-facing

• 3 tinted sliding windows on left-hand side for rear-facing or on right-hand side for forward-facing

• 2 air vents

• Tying bar on each side wall

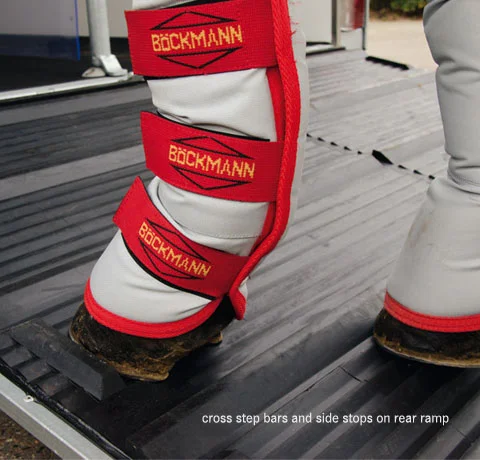

• Ramp with gas shocks and non-slip rubber safety mat with treads and side stops OR two-wing door with sliding windows

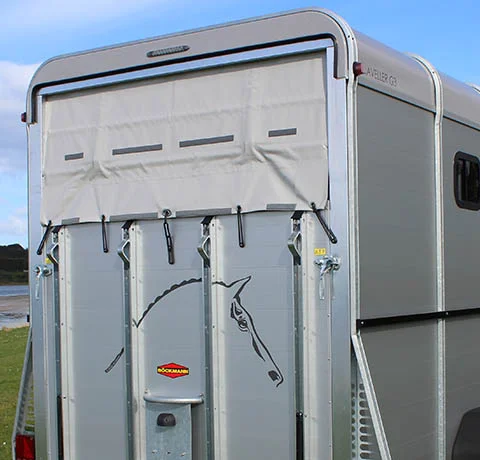

• Tarpaulin flap with integrated net above ramp (auto-lift) with the ramp option

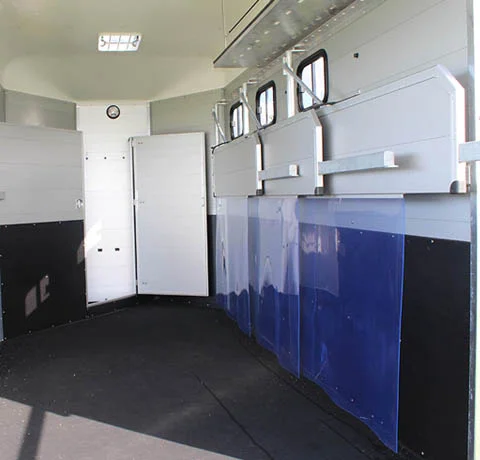

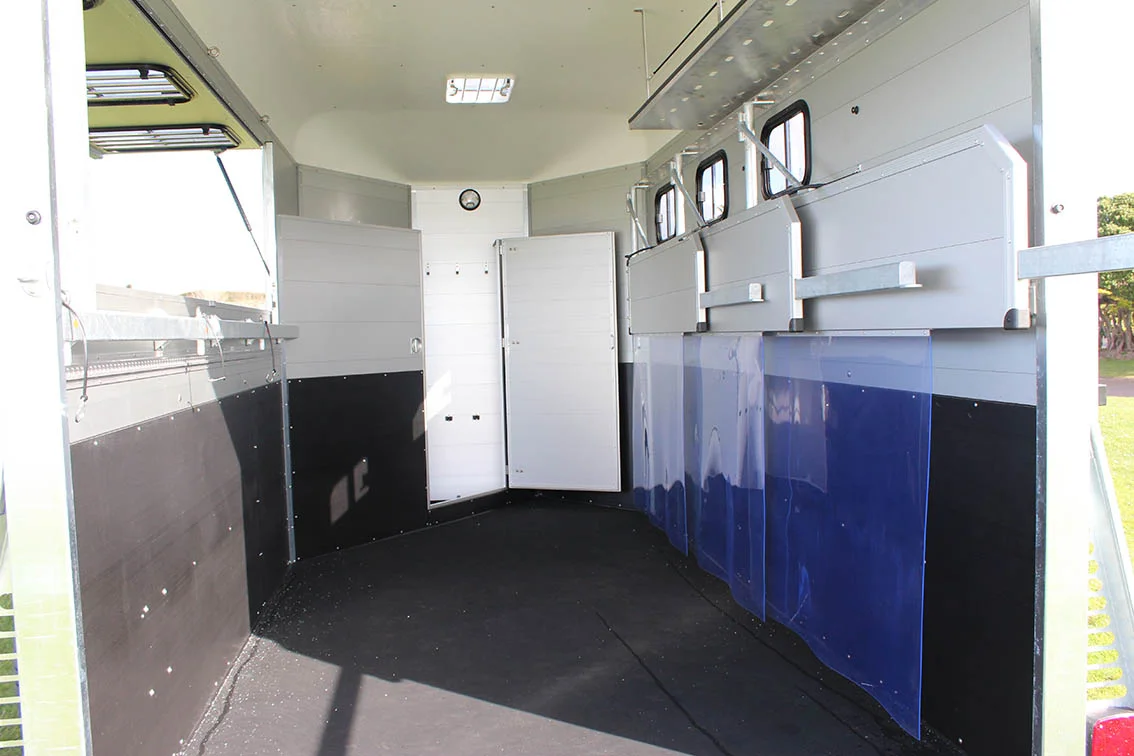

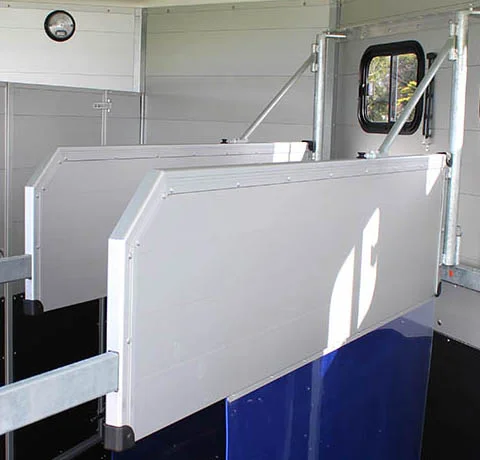

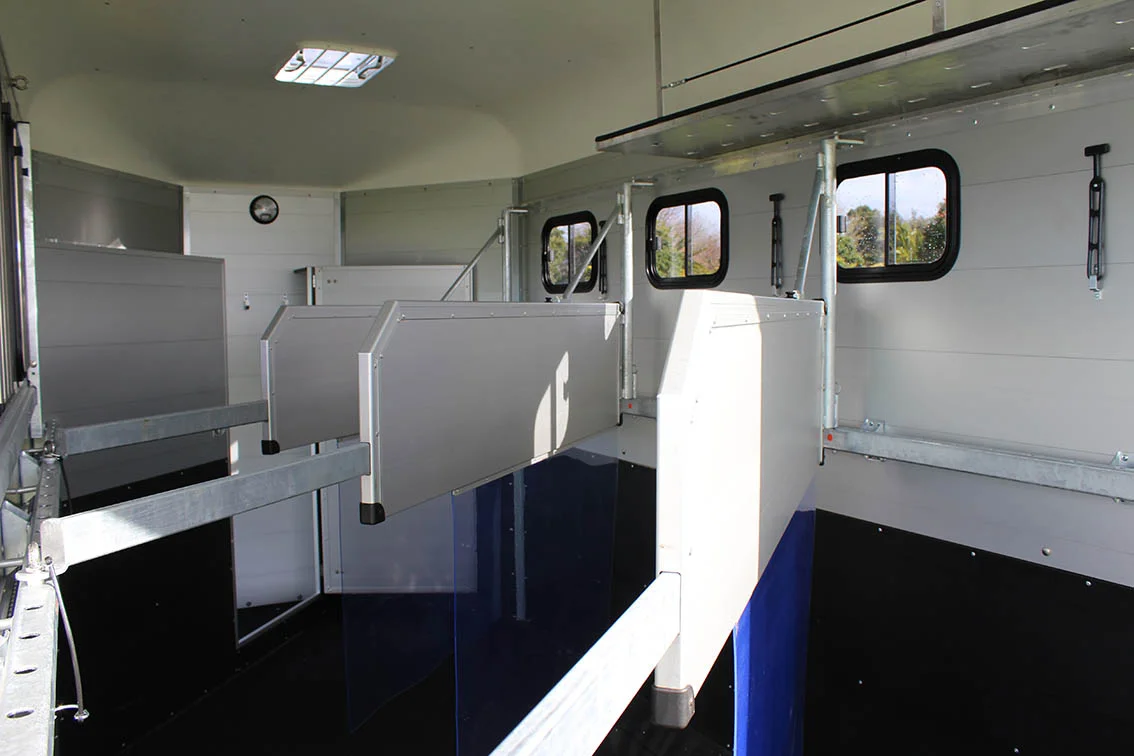

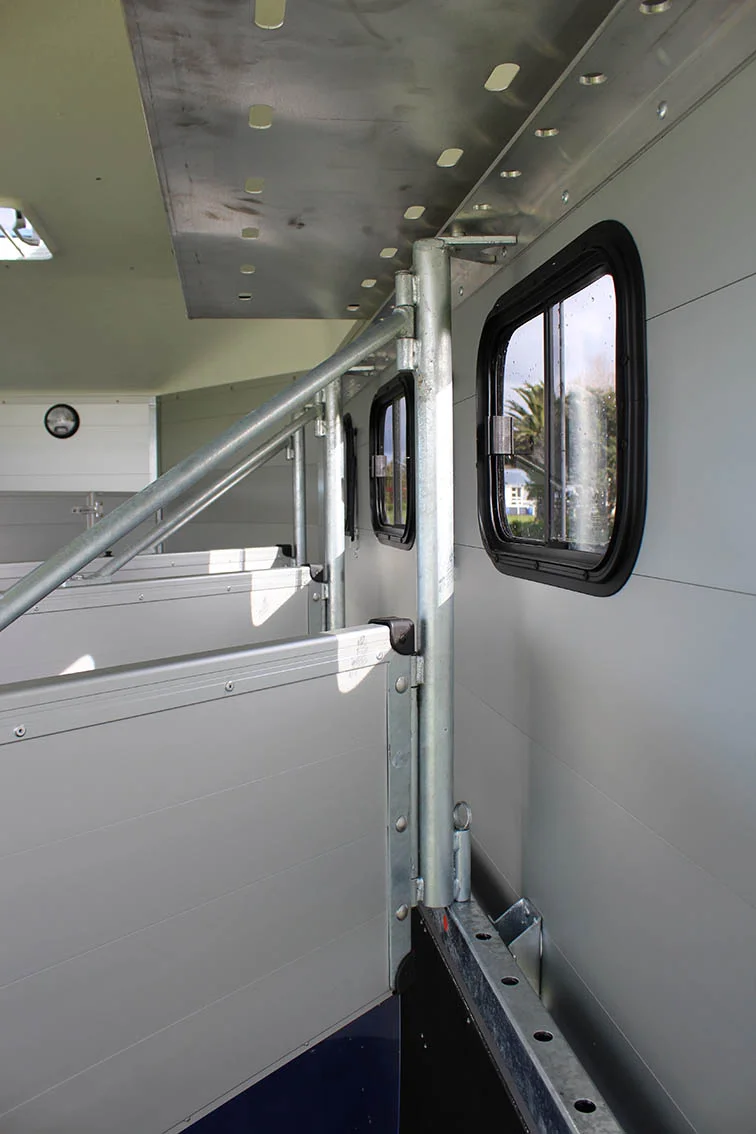

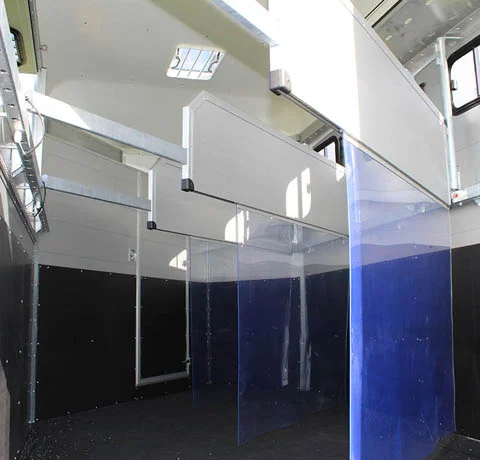

• Telescopic aluminium divider walls with a clear PVC curtain (adjustable on the side)

• Durable High Density Polyethylene internal side kick protection on all walls

• Practical tack room in the front bow separated from the horse compartment by a partition wall with 3 extendable saddle racks, 5 bridle hooks, shovel & brush, interior lighting

• 3 feeding troughs

• 3 hay net hooks

• Interior lighting

• Comprehensive 2-year warranty

Forward facing

Colour options

Anthracite black metallic, silver metallic, white, dark blue metallic, red metallic, green metallic, flame red, yellow, royal blue, magenta, yellow-green, deep-orange and any custom colour or decor.

Body, roof, fender and brace colours in fibreglass finish can be mixed in any colour combination.

Optional extras

• Drop leg right side / left side

• Weather-proof protective cover for coupling and jockey wheel

• Rear view mirror for coupling procedure

• Third brake light at rear ramp

• Rear view mirror for coupling procedure

• Additional sliding windows

• Additional air vent

• Additional rubber mat for wear protection

• Lockable fibreglass flap above rear ramp

• side flap with integrated sliding windows and gas struts

• Climbing aid (foldable mounting block)

• Spot light outside

• Awening

• Head divider / stallion guard

• Lashing rails for tying up

• Tie up for lashing rails

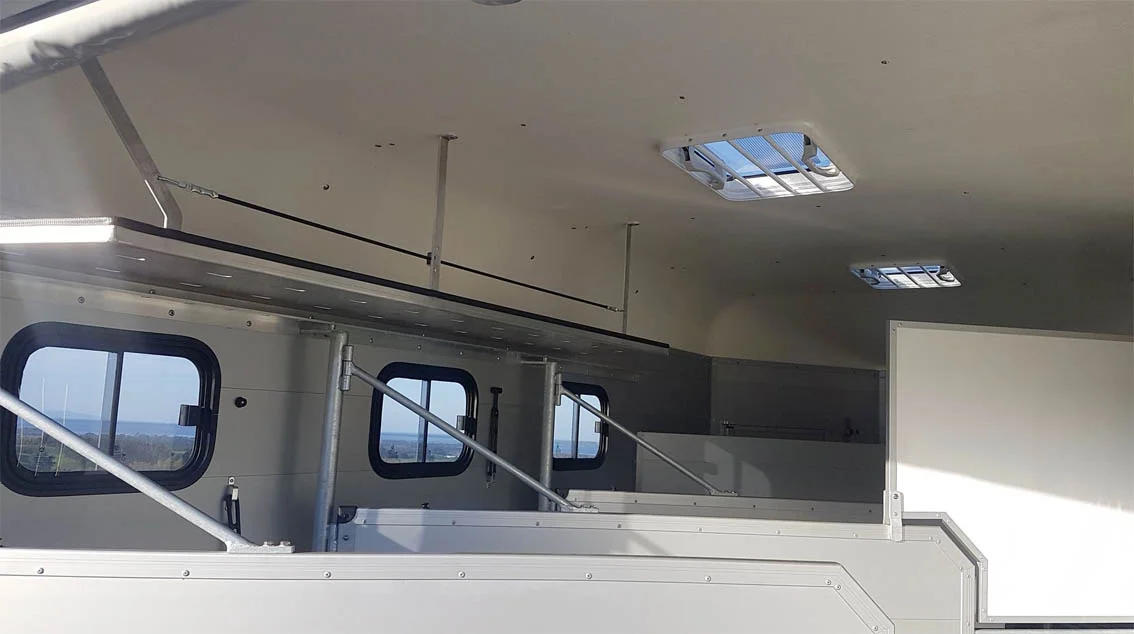

• Ceiling storage

• Access door to tack room in partition wall

• Wireless video monitoring device (2 cameras)

• Decor motif on each side wall (small or large)

Boeckmann decors

Enhance the appearance of your Boeckmann horse float with a small or large decor designed by Jan Kuenster. Decors are available in silver, black or multicoloured. On request we will be happy to create decors and decor sizes to your specifications.
